Balcony Energy Storage key sepcification:
| Inverter | 1600W/2000W |
| EMS | 1600W |
| Battery capacity | 1024Wh (max. stacking up to 6 units) |
| Solar panel | 240W, up to 4 panels configurable |
Selling point

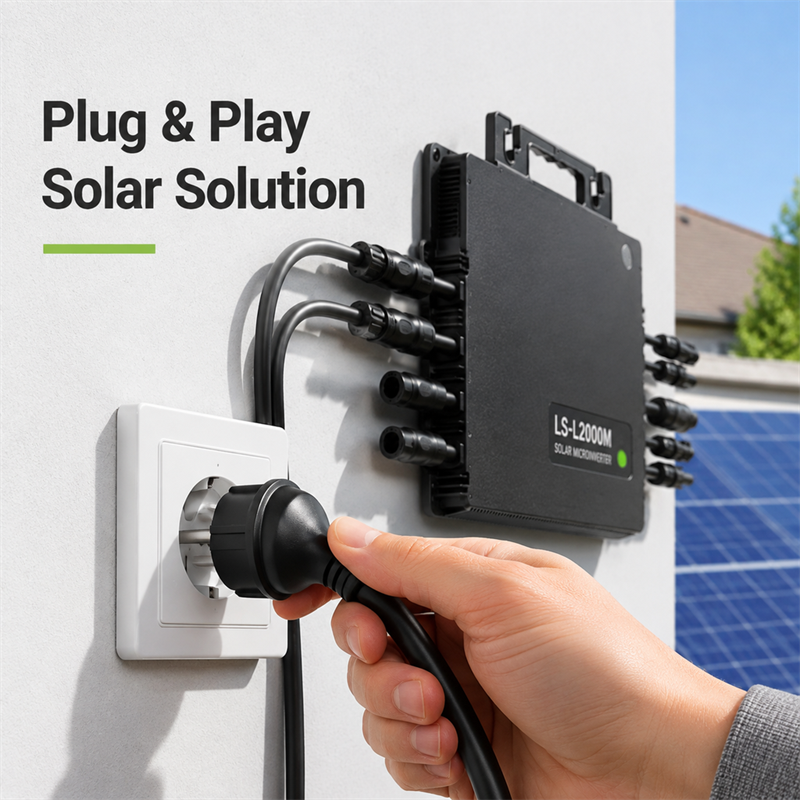

1. Plug & Play
2. 2 million installed base in the German market
3. Payback within 18 months
4. Suitable for balcony and RV applications, space-saving
5. Grid connection certifications obtained for Germany, France, UK, Belgium, Sweden, Netherlands and other European countries
6. Freely stackable; greater advantages in customization and after-sales service
7. Stock available in Germany and the UK for faster delivery, reducing distributors’ inventory costs
8. High customer repurchase rate, lowering marketing expenses
9. Wide product compatibility, compatible with mainstream inverter models
10. Built-in self-heating function for winter operation
1. Our DC coupling solution is very clear in structure,Without complexintelligent systems,and ordinary electricians can easily troubleshoot it,The after-sales threshold is very low
1. CE and UCKA certification for the whole series,which &s universal in Europe,It is compatible with different countries mmicroinverters
2. DC coupling technology is no longer a new technology,After more than five years of Technologial iteration,It has been deployed in Europe for more than three years,The cumulative stable,The cumulative stable operation volume is also very large
3. We use modular building block batteries,Which run separately groups,If a single group has a problem,only that group needs to be replaced.without returning the whole machine,It also supports outdoor power supply,with an off-grid inverter,users can also achieve outdoor power supply freedom

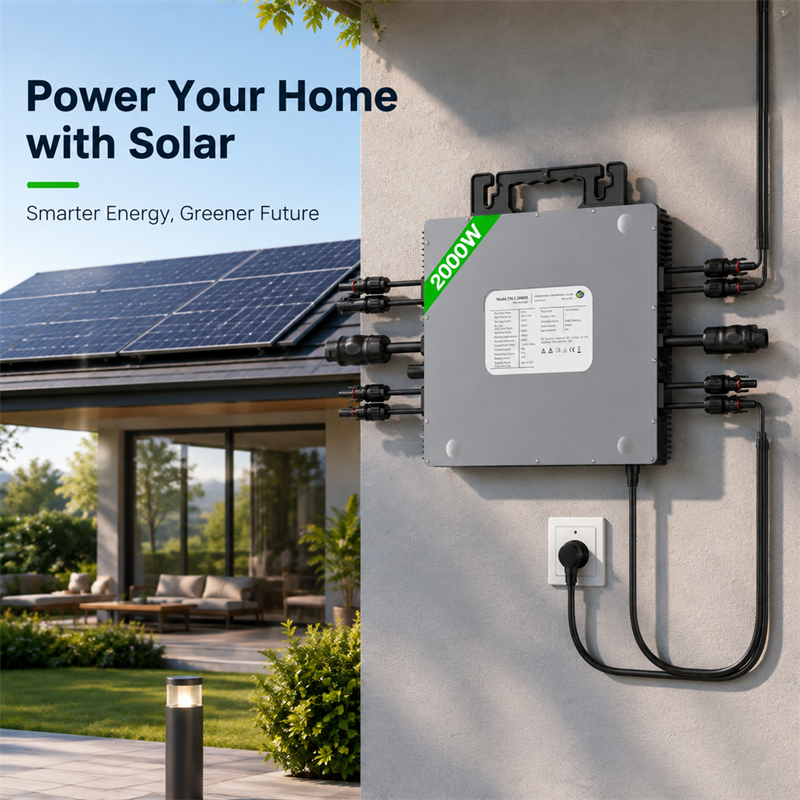

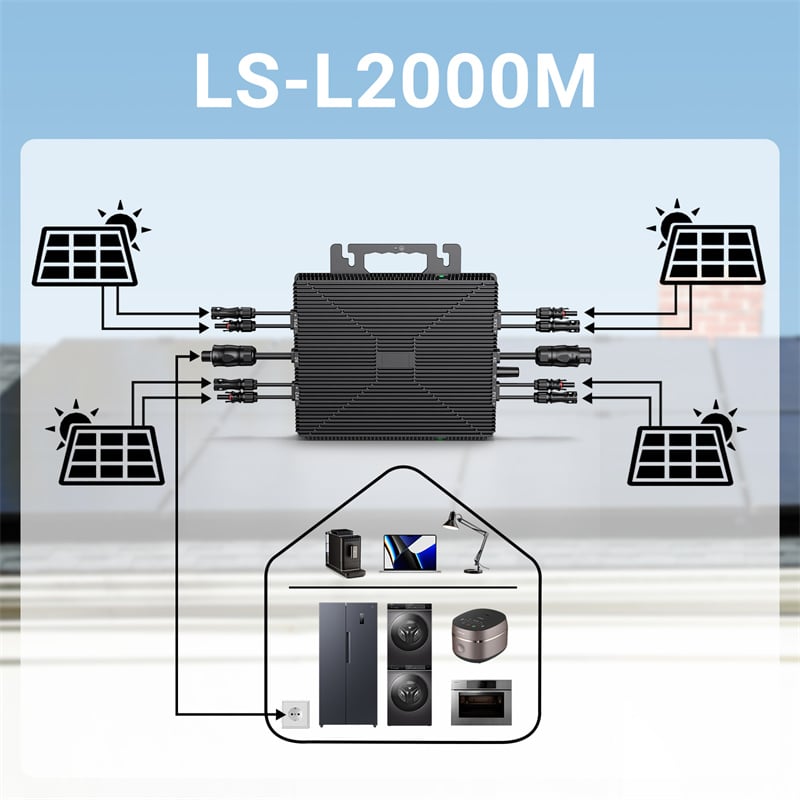

Mini Inverter
| Model Name | LS-1600M/LS-2000M |
| Recommended PV Module Power | 280W-550W/650W |
| Start-up Voltage | 20V |
| MPPT Voltage Range | 25/28-55V |
| Max. Input Voltage | 60V |
| Max. Input Current | 13A/15A*4 |
| Max. DC Short Circuit Current | 19A |
| Number of MPPTs | 4 |
| Rated output power | 1600W/2000W |
| Nominal Output Voltage | 230V |
| Extended Output Voltage Range | 184-253 |
| Nominal Output Current | 7A/8.7A |
| Max. Output Current | 4A |
| Nominal Frequency/Range | 50Hz/45 - 55 |
| Power Factor | >0.99( default) |
| Total Harmonic Distortion (THD) | <3% |
| Max. Units Per Branch | 3 |
| Peak Efficiency | 0.96 |
| CEC Efficiency | 0.955 |
| Static MPPT Efficiency | 0.995 |
| Night Time Power Consumption | <50mW |
| Ambient Temperature Range | -40℃ ~ +65℃ |
| Dimensions(WxHxD) | 312mm*301mm*43mm |
| Weight | 7kg |
| Enclosure Rating | IP 67 |
| Cooling | Natural Convection - No Fans |
| Type of Isolation | High Frequency Transformers |
| Communicationt | WiFi |

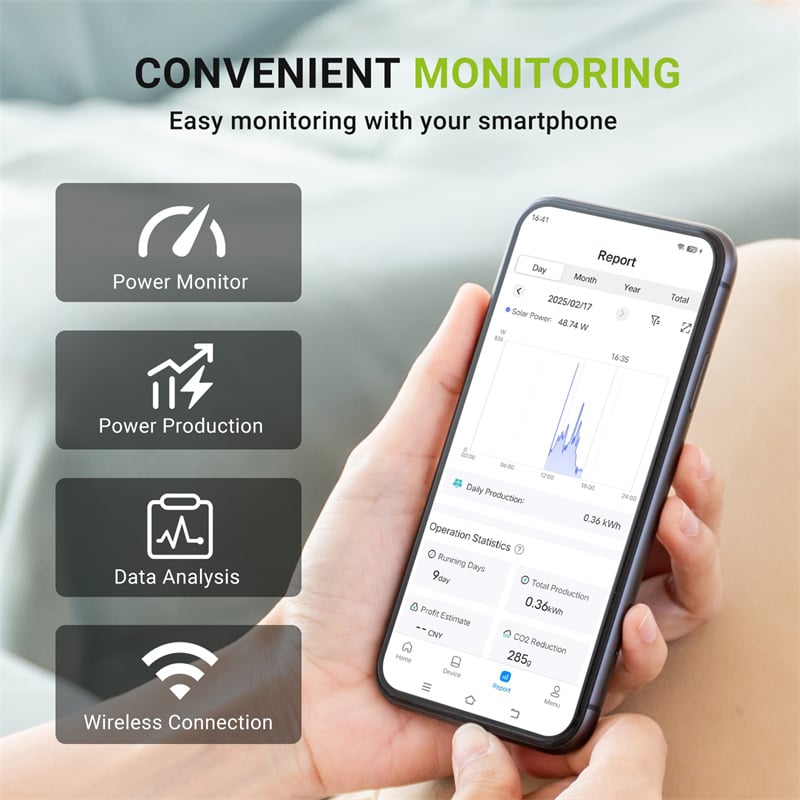

| Energy Management | Solarman Online Platform |
Hub
| Model | LS-H1600 |
| Recommended PV module power | 800Wx2 |
| PV input voltage | 12V - 60V |
| PV input current | 25Ax2 |
| PV input power | 800Wx2 |
| Battery charging power | 1600W |
| Inverter output voltage | 18V - 55V |
| Inverter output current | 28Ax2 |
| Inverter output power | 1600W |
| MPPT start voltage | 18V |
| MPPT tracking efficiency | 99,90% |
| Peak conversion efficiency | 0.98 |
| Working environment temperature | -20℃~65℃ |
| Protection level | IP65 |
| Communication method | RS485/CAN/WiFi |
| Dimensions | 340 x 213 x 67 mm |
| Weight | 3,2 kg |
| Model | LS-L1024 |
| Rated Capacity | 1024Wh |
| Rated Voltage | 51.2V |
| Working Voltage Range | 40~58.4V |
| Battery Type | LiFeP04 |
| Dimensions(WxHxD) | 320*200*196mm |
| Weight | 9.3kg |
| Expandable | 6 |
| Charging temperature range | 0~55°C |
| Discharge temperature range | -20~65°C |
| Protection Class | IP65 |
| Cooling | Natural cooling |
| Warranty | 10 Years |
| Cycles Times | 6000 |
| Protocol Type | CAN/RS-485 |
| Standards | 2015/863/EU (ROHS)EN IEC 62368-1:2020+A11:2020EMC EN IEC 61000-3-2:2019 |
Flexible Solar Panel
| Model | LS-240W |
| Type Name | FLEX240MD(BK) |
| Maximum Power (Wp) | 240W |
| Cell No. | MONO182 (6x12) |
| Connection | Parallel |
| Open Circuit Voltage (Voc) | 23.60V |
| Short Circuit Current (lsc) | 11.90A |
| Maximum Power Voltage (Vm) | 21.01V |
| Maximum Power Current (Im) | 11.23A |
| Maximum Series Fuse | 20A |
| Efficiency | 0.1755 |
| Net Weight | 2.6KG |
| Cables & Plug Connectors | 2x3000mm / 2.5m㎡ |
| Module Dimensions (L/W/H) | 1150x1090x2mm |
| 2 in 1 Carton Dimensions (inner) | 1170x1120x30mm |
| Qty/20GP | 1300pcs |
| Number of Diode | 2 |
| Power Tolerance | ±3% |
| Junction Box (Protection Degree) | ≥IP67 |
| Maximum System Voltage | 600V/DC |
| Temperature-Coefficient Isc | +0.08558%/°C |
| Temperature-Coefficient Uoc | -0.29506%/°C |
| Temperature-Coefficient Pmpp | -0.38001%/°C |
| Operating Temperature | -40°C... +85°C |
| Standard Test Conditions | 1000W/M2,25°C, AM1.5 |
| Certificate | CE |
