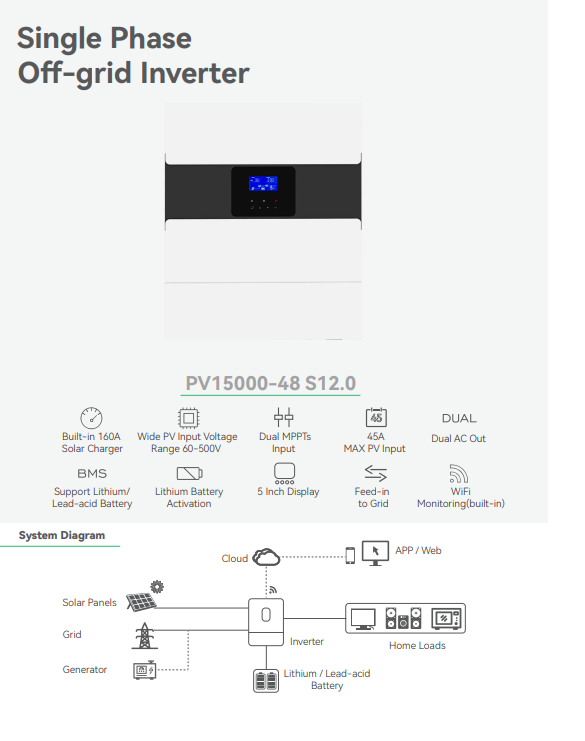

12KW Off-Grid Solar Inverter PV15000-48 S12.0 - Efficient Power Solution for Home & Commercial Use

Unlock reliable, high-performance energy independence with the PV15000-48 S12.0 12KW off-grid solar inverter—your ultimate partner in harnessing solar power for seamless daily use. Designed for both residential and small commercial applications, this inverter combines cutting-edge technology, robust construction, and user-friendly features to deliver consistent power output, even in challenging environments. Whether you’re looking to reduce electricity bills, prepare for power outages, or build an off-grid energy system, this 12KW inverter stands out as a top-tier choice that balances efficiency, durability, and versatility.

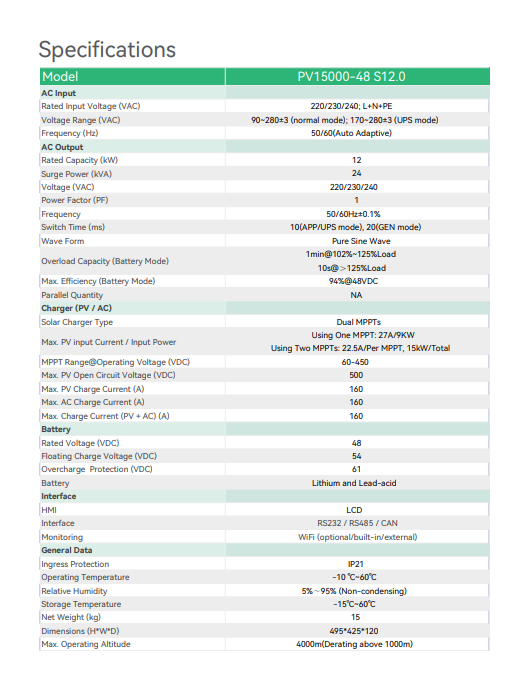

At the core of this inverter’s exceptional performance is its dual MPPT (Maximum Power Point Tracking) solar controller, boasting a powerful 160A maximum charge current. With a total maximum PV array power of 15KW, it efficiently converts solar energy into usable electricity, maximizing energy harvest from your solar panels. The MPPT operating voltage range of 60-450VDC and 500VDC maximum open-circuit voltage offer flexible compatibility with various solar panel configurations, allowing you to optimize your system based on available space and energy needs. Whether using one or two MPPTs, the inverter adapts seamlessly—supporting 27A/9KW with a single MPPT and 22.5A per MPPT (15KW total) when dual MPPTs are deployed—ensuring optimal performance in any setup.

When it comes to power delivery, the PV15000-48 S12.0 excels in stability and reliability. Its 12KW rated AC output capacity (24KVA surge power) provides ample power to run multiple appliances, tools, and equipment simultaneously—from refrigerators and air conditioners to industrial machinery. The pure sine wave output mimics grid power, ensuring safe operation for sensitive electronics like computers, televisions, and medical devices, while the 0.1% frequency accuracy (50/60Hz auto-adaptive) guarantees consistent performance across different regional power standards. With a rapid switch time of just 10ms between APP/UPS modes and 20ms in GEN mode, you’ll experience uninterrupted power transitions, eliminating disruptions to your daily activities or business operations.

Versatility is another key strength of this 12KW inverter. It supports both lithium and lead-acid batteries (48VDC rated voltage), giving you the freedom to choose the battery type that best fits your budget and energy requirements. The intelligent charging system allows for both PV and AC charging, with a maximum combined charge current of 160A, ensuring fast and efficient battery replenishment. The floating charge voltage of 54VDC and overcharge protection at 61VDC safeguard your batteries, extending their lifespan and ensuring safe operation. Additionally, the inverter’s AC input voltage range of 90280VAC (normal mode) and 170280VAC (UPS mode) adapts to fluctuating grid voltages, making it suitable for regions with unstable power supplies.

Durability and usability are prioritized in every aspect of the PV15000-48 S12.0’s design. With an IP21 ingress protection rating, it’s safeguarded against dust and dripping water, making it suitable for both indoor and protected outdoor installations. The inverter operates reliably in a wide temperature range of -10°C to 60°C (storage temperature: -15°C to 60°C) and can handle altitudes up to 4000m (with derating above 1000m), ensuring performance in diverse climatic conditions. Its compact dimensions (495×425×120mm) and net weight of just 15kg make installation and transportation a breeze, without compromising on power or durability.

Stay in control of your energy system with the inverter’s intuitive monitoring and connectivity features. The built-in LCD HMI (Human-Machine Interface) provides real-time data on power output, battery status, PV charging, and system performance, allowing you to track and adjust your energy usage effortlessly. For advanced monitoring, the inverter supports RS232/RS485/CAN interfaces and optional built-in or external WiFi, enabling remote access via your smartphone or computer. Whether you’re at home or away, you can monitor your system, receive alerts, and make adjustments to optimize efficiency—putting complete control of your energy solution at your fingertips.

Safety is non-negotiable, and the PV15000-48 S12.0 is equipped with comprehensive protection features to ensure peace of mind. The overload capacity in battery mode (1 minute at 102%~125% load, 10 seconds at >125% load) prevents damage from sudden power spikes, while overcharge protection, short-circuit protection, and temperature protection work together to safeguard the inverter, batteries, and connected devices. With a maximum efficiency of 94% in battery mode, it minimizes energy waste, maximizing the return on your solar investment.

Ideal for off-grid homes, rural cabins, small farms, and commercial facilities, the 12KW PV15000-48 S12.0 solar inverter is more than just a power converter—it’s a reliable energy partner that empowers you to take control of your electricity needs. Its combination of high efficiency, flexible compatibility, robust construction, and smart monitoring makes it a standout choice for anyone seeking a sustainable, cost-effective energy solution. Invest in the PV15000-48 S12.0 today and step into a future of energy independence, lower costs, and reliable power—wherever life takes you.

Upgrade your solar system with a inverter that delivers on performance, durability, and versatility. The PV15000-48 S12.0 12KW off-grid solar inverter is engineered to exceed your expectations, providing consistent, efficient power for years to come. Order now and join thousands of users who have transformed their energy usage with this industry-leading solution.
